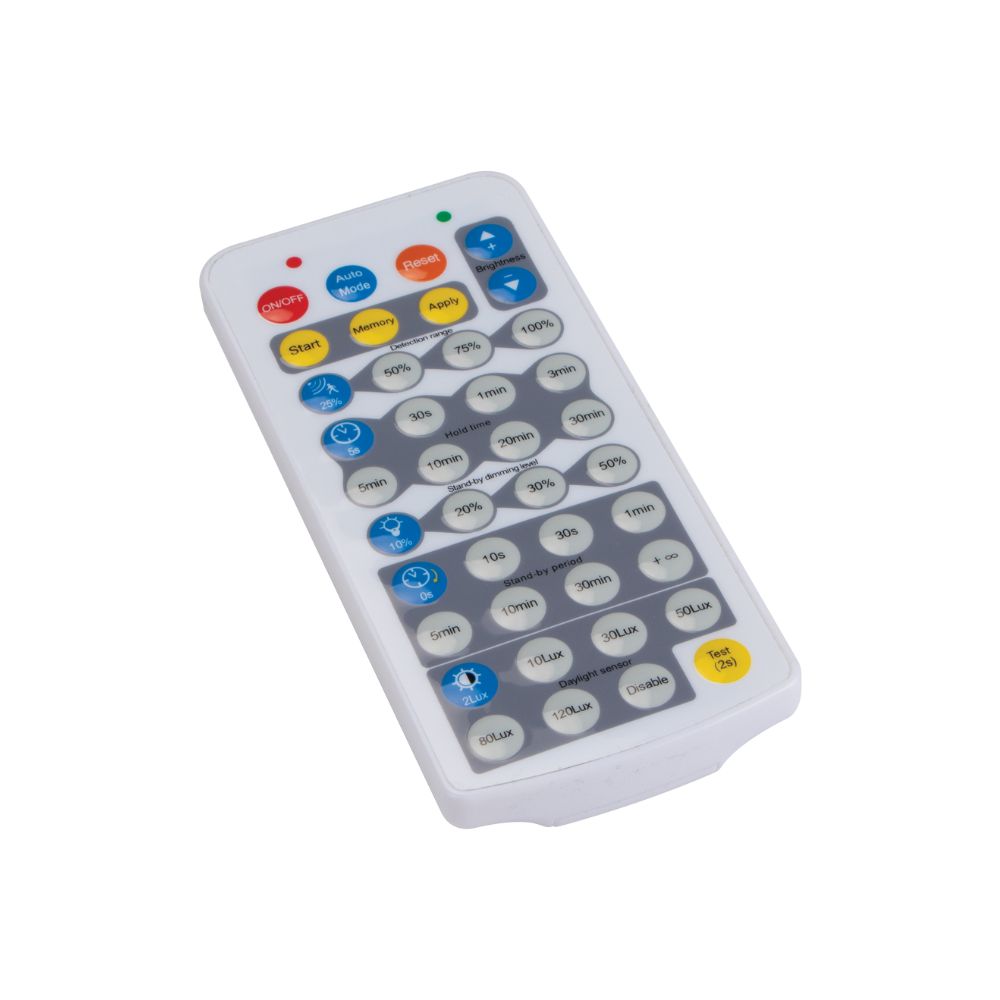

This remote control offers convenient sensor programming for various applications including batten lights with sensor (only one remote is needed if multiple battens are used). For single sensor testing, use the ON/OFF button to activate the light and the RESET button to start programming. Select the desired functions, such as detection area and hold time, then press DONE to save the settings in the remote. For project programming, follow similar steps starting with the 1st sensor and use the MEMORY button to save the program. Additionally, the remote allows for manual dimming using the +- buttons for brightness adjustment. It includes keys for ON/OFF, Auto Mode, Reset, and more, providing comprehensive control. Settings are saved in memory and can be applied within 30 seconds, ensuring quick and efficient setup for your lighting needs.
Sensor Programming is simple:
1. Press the ON/OFF button to activate the light.
2. Press the RESET button to initiate programming.
3. Select the necessary functional buttons for each zone: detection area, hold time, standby dimming level, standby period, and daylight threshold.
4. Press DONE to save the programming settings in the remote.
For project programming purposes:
1. Press the ON/OFF button to activate the light.
2. Press the RESET button to begin programming.
3. Press the START button.
4. Choose the necessary functional buttons for each zone: detection area, hold time, standby dimming level, standby period, and daylight threshold.
5. Press the MEMORY button to save the program in the remote. 6. Press the APPLY button to implement the saved program.
For Manual Dimming:
1. Press the ON/OFF button to turn on the light.
2. Use the +- buttons on the top right corner to manually dim the light up or down.
3. Press the TEST (2S) button to test the sensor connection; the light will remain on for 2 seconds.
COLOUR: White
WARRANTY: 3 year
IP RATING: IP44
ON/OFF: Functions as a switch of the light.
AUTO MODE: Sensor starts to work and all settings remain the same before the light gets switched on/ off.
RESET: All settings will be initialized (any sittings that are controlled by DIP switches will be controlled by DIP switches), brightness and detection zone will be at 100% detection range, hold time SS, no stand-by time and daylight threshold disabled.
INCREASE/DECREASE: Adjusts brightness 10-100% in on/off mode, and 60-100% in sensor mode
START: Changes detection range, daylight threshold, holdtime, standby dimming level.
MEMORY: Saves all the settings.
APPLY: Sets the saved settings.
HOLD TIME: Defines holdtime 5s-30s-1min-3min-5min-10min-20min-30min.
STAND-BY DIMMING LEVEL: Defines stand-by dimming level 10%-20%-30%-50%
STAND-BY PERIOD: Defines stand-by period 0s-10s-30s-1min-5min-10min-30min (Note: 0s means no standby period)
DAYLIGHT THERESHOLD: Defines daylight level 2Lux-10Lux-30Lux-50Lux-80Lux-120Lux-Disable Note: Disable means light will be turned on once sensor detects movement, regardless of the ambient lux
TEST MODE: Used for testing purposes after commissioning. The sensor goes to test mode (hold time is only 2s)
