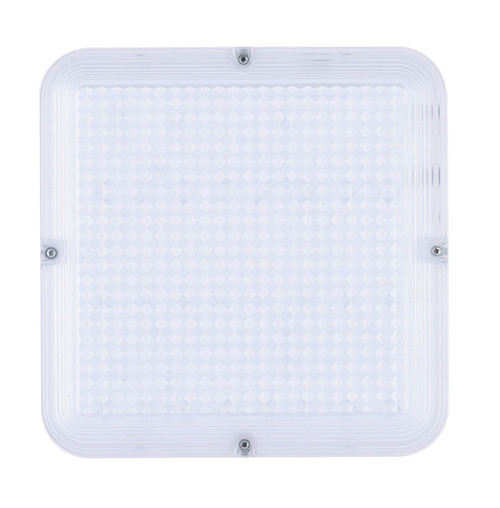

This industrial grade emergency light is engineered to provide reliable illumination in both harsh environments and demanding conditions. Built with industrial strength, it features a robust and weatherproof polycarbonate enclosure, offering exceptional resistance to water, dust, and impact. With an IP65 rating, it is fully protected against the ingress of dust and can withstand water jets, making it an ideal solution for outdoor applications such as car parks, exposed stairwells, and swimming centers. Furthermore, the IK10 vandal-proof rating ensures that this unit will resist significant physical impact, making it suitable for high-risk areas such as construction zones and public transport stations.
The light is powered by a highly efficient 22W 4000K LED array that delivers 2000 lumens of light output. This array is fixed within the fitting and has a lifetime warranty, providing up to 50,000 hours of dependable service. The light output is optimized with a wide 120° beam angle that ensures excellent coverage across large areas, while the CRI of greater than 84 ensures accurate color rendering, making it suitable for both security and safety applications. The fixture is designed with multi-mode operation, offering flexibility in installation: it can be set to maintained, non-maintained, or switchable modes to suit specific needs.
Designed with user safety and convenience in mind, this emergency light is equipped with a built-in intelligent 3-stage charger and battery management system that ensures optimal battery health, with overcharge, low voltage disconnect, overcurrent, and short circuit protections in place. The battery provides over 2 hours of operation during power outages, meeting the stringent AS/NZS 2293 standard. The light also includes a manual test switch and a battery charger status LED indicator, ensuring that the system is always functioning properly and ready when needed. The unit operates across a temperature range of 1° to 40°C, ensuring reliable performance in varying climates.
Installation is straightforward, with a large terminal block and 20mm² cable entry that simplifies the wiring process. The light can be surface mounted on either a wall or ceiling, making it adaptable to different spaces. The product complies with multiple safety standards including RCM, EMC, and AS/NZS 60598.1, and it is classified for emergency lighting usage (C0 D63 C90 D63). This emergency light is an ideal, long-lasting solution for providing dependable illumination in both commercial and industrial settings, ensuring safety and visibility when it is needed most.
TYPE: Industrial Strength Emergency Light - Ceiling or Wall
OPERATION: Multi-mode - maintained / non-maintained / switchable
COLOUR: White
WARRANTY: 3 years
IP RATING: IP65 (weather resistant)
IK RATING: IP10 (highest anti-vandalism rating available)
MATERIAL: Dye-cast aluminium chassis, polycarbonate diffuser
GLOBE TYPE: 22W 4000K LED array (fixed in fitting - lifetime warranty on LED)
GLOBE INCLUDED: Yes (fixed LED)
LUMENS: 2000lm
BEAM ANGLE: 120°
CRI: >84
LIFESPAN: 50,000 hours
DIMENSIONS: 315mm x 315mm x 100mm
WEIGHT: 3kg
WATTAGE: 23W (maintained), 5W (non-maintained)
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATORS: Battery charger green LED
VOLTAGE: 230V (will handle 240V)
INSTALLATION: Large terminal block and 20mm² cable entry
MOUNTING: Surface mounted - wall or ceiling
APPROVAL: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
CLASSIFICATION: C0 D63 C90 D63
DURATION: > 2 Hours (AS/NZS 2293) during power outage
CHARGER TYPE: Intelligent 3-stage charger with battery management system
OPERATING TEMP: 1° to 40°C
OPTIONAL: microwave dimming motion sensor and dimming controllers (contact us if you need this)
