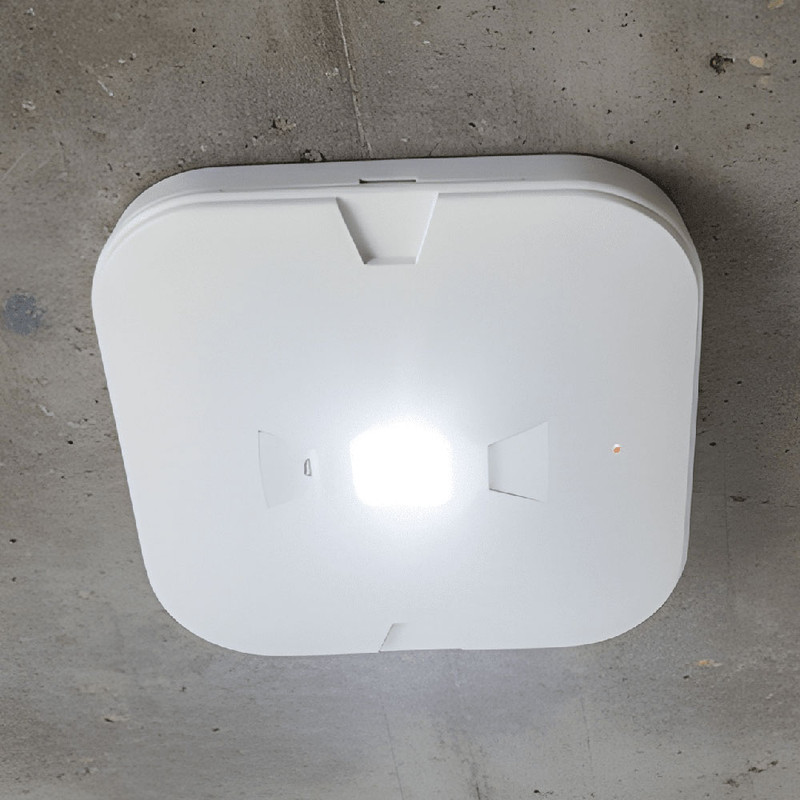

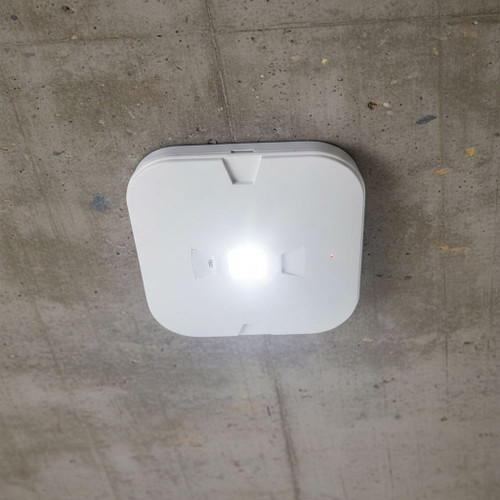

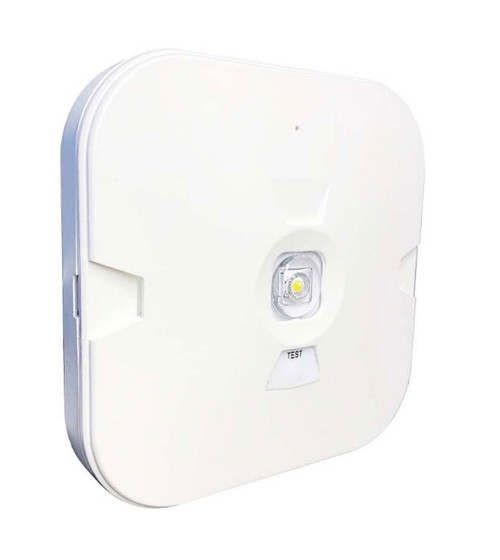

This industrial strength emergency light combines a lifetime-warranted LED with an optical lens to deliver an unobtrusive, ultra-bright source of illumination intended to alleviate panic and establish a safe, distinct and efficient path in the event of an emergency. It is surface mounted and can be used in almost all  general applications including offices, shopping centres, commercial properties and residential buildings.

TYPE: Industrial Strength Emergency Light
COLOUR: White
WARRANTY: 5 years
IP RATING: IP65 (fully weatherproof)
MATERIAL: Flame-retardant polycarbonate
GLOBE TYPE: High performance 4W LED with optical lens - lifetime warranty
GLOBE INCLUDED: Yes (fixed LED chip)
DIMENSIONS: 130mm x 130mm x 35mm
MOUNTING: Surface mounted - ceiling or wall
INSTALLATION: Terminal block, 20mm² cable entry
WEIGHT: 1kg
WATTAGE: 2W (non-maintained)
VOLTAGE: 230V (handles 240V)
APPROVAL: Compliant to RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
APPLICATIONS: Offices, shopping centres, commercial properties, and residential buildings
CLASSIFICATION: C0 D63 C90 D63
DURATION: > 2 Hours (AS/NZS 2293)
CHARGER TYPE: 16 hours intelligent 3-stage charger battery management system
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATOR: Battery charger green LED
AMBIENT TEMP: 1° to 40°C

Ordering Information
Model Number: 16063
Model Name: 2W Emergency Light Industrial Strength D63 LED IP65 2 Hours White
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

This product conforms to AS/NZ electrical standards. Electrical installation must be performed by a licensed electrician. All product details are subject to change without notice. Final specifications may vary.
