EXITINGemergency and exit lights

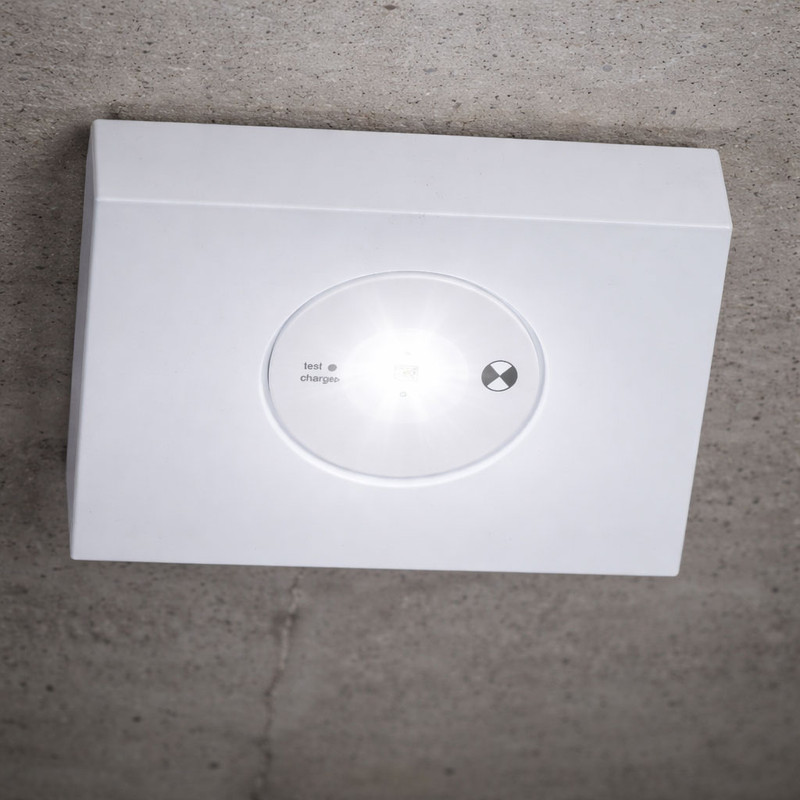

This industrial strength emergency light delivers an unobtrusive, ultra-bright source of illumination intended to alleviate panic and establish a safe, distinct and efficient path in the event of an emergency. It is surface mounted and can be used in almost all internal applications including offices, shopping centres, commercial properties and residential buildings.

TYPE: Industrial Strength Emergency Light
OPERATION: Non-maintained (means light only activates during an emergency or mains power failure)
COLOUR: White
WARRANTY: 5 years
IP RATING: IP65 (fully weatherproof)
MATERIAL: Sheet metal
GLOBE TYPE: High performance 3W LED - lifetime warranty
GLOBE INCLUDED: Yes (fixed LED chip)
DIMENSIONS: 255mm x 175mm x 45mm
MOUNTING: Surface mounted - ceiling
INSTALLATION: Terminal block, 20mm² cable entry
WEIGHT: 2kg
WATTAGE: 2W (standby)
VOLTAGE: 230V (handles 240V)
APPROVAL: Compliant to RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
APPLICATIONS: Offices, shopping centres, commercial properties and residential buildings
CLASSIFICATION: C0 D40 C90 D40
DURATION: > 2 Hours (AS/NZS 2293)
CHARGER TYPE: 16 hours intelligent 3-stage charger battery management system
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATOR: Battery charger green LED
AMBIENT TEMP: 1° to 40°C

Ordering Information
Model Number: 16073
Model Name: 2W Emergency Light Industrial Strength D40 LED IP20 2 Hours Non Maintained White
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

This product conforms to AS/NZ electrical standards. Electrical installation must be performed by a licensed electrician. All product details are subject to change without notice. Final specifications may vary.

Product Name: 2W Emergency Light Industrial Strength D40 LED IP20 2 Hours Non Maintained White
Product Code: 16073

This industrial strength emergency light delivers an unobtrusive, ultra-bright source of illumination intended to alleviate panic and establish a safe, distinct and efficient path in the event of an emergency. It is surface mounted and can be used in almost all internal applications including offices, shopping centres, commercial properties and residential buildings.

TYPE: Industrial Strength Emergency Light
OPERATION: Non-maintained (means light only activates during an emergency or mains power failure)
COLOUR: White
WARRANTY: 5 years
IP RATING: IP65 (fully weatherproof)
MATERIAL: Sheet metal
GLOBE TYPE: High performance 3W LED - lifetime warranty
GLOBE INCLUDED: Yes (fixed LED chip)
DIMENSIONS: 255mm x 175mm x 45mm
MOUNTING: Surface mounted - ceiling
INSTALLATION: Terminal block, 20mm² cable entry
WEIGHT: 2kg
WATTAGE: 2W (standby)
VOLTAGE: 230V (handles 240V)
APPROVAL: Compliant to RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
APPLICATIONS: Offices, shopping centres, commercial properties and residential buildings
CLASSIFICATION: C0 D40 C90 D40
DURATION: > 2 Hours (AS/NZS 2293)
CHARGER TYPE: 16 hours intelligent 3-stage charger battery management system
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATOR: Battery charger green LED
AMBIENT TEMP: 1° to 40°C

Product Name: 2W Emergency Light Industrial Strength D40 LED IP20 2 Hours Non Maintained White
Product Code: 16073
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

Exiting emergency and exit lights
ABN 97 623 567 868
www.exiting.com.au

This product conforms to AS/NZ electrical standards. Unless marked as DIY, electrical installation must be performed by a licensed electrician. The information in this datasheet has been carefully checked and is believed to be accurate - it is our practice to provide accurate information wherever possible; however, final specifications may vary. Performance data given in this document are provided as a guide for the user in determining suitability and do not constitute a warranty. Actual performance is subject to the Warranty and Limitations of Liability. Lighting Style shall not be responsible for special, indirect, or consequential damages or loss in any way connected with this product. Warranty is subject to the product being properly handled, stored, installed, and maintained.
