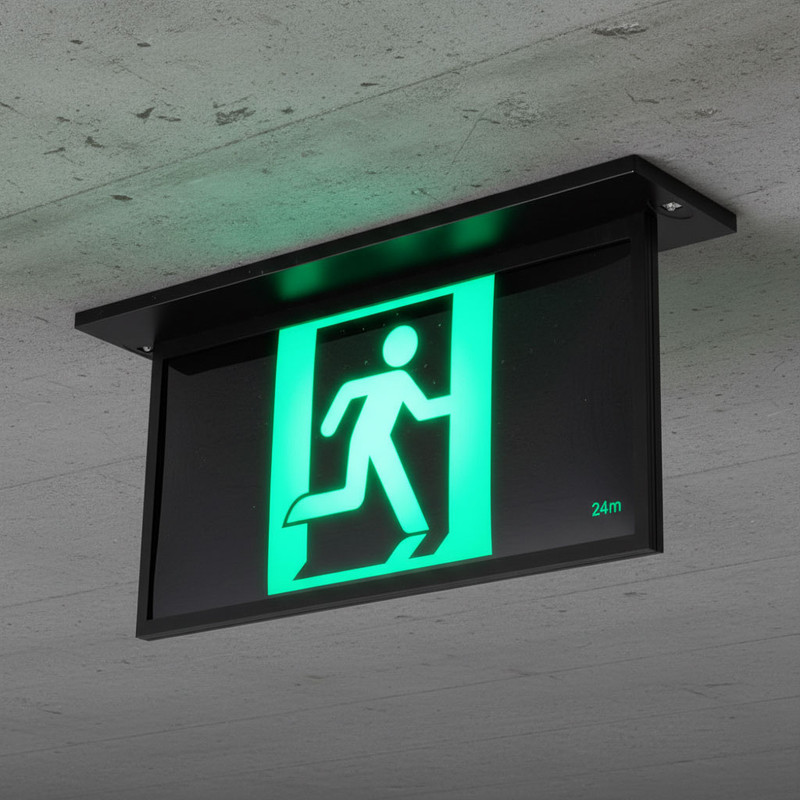

This emergency exit sign incorporates an integral emergency 2 hour battery pack that permits self-powered operation during power outages, backup with 50,000 hours average life rated LED modules. Includes replaceable easy fit pictogram decals.

Note: AS2293.1:2018 states that for for areas with low illuminance, it is acceptable for an emergency exit sign to have a dark background. Examples given by AS 2293.1:2018 of low illuminance areas include theatres, cinemas, auditoriums and lecture rooms.

TYPE: Emergency Exit Sign
COLOUR: Black
WARRANTY: 3 years
IP RATING: IP20 (indoor only)
MATERIAL: Injection moulded polycarbonate (fitting), acrylic (diffuser) with pictogram legends
GLOBE TYPE: LED (fixed in fitiing)
GLOBE INCLUDED: Yes (fixed LED chip)
CRI: 83
LIFE SPAN: 50,000 hours
DIMMABLE: No
HEIGHT: 212mm
WIDTH: 364mm
DEPTH: 94mm
WATTAGE: 5W (2W maintained lamp, 1W non-maintained lamp)
VOLTAGE: 240V
INSTALLATION: Recessed mounted
INCLUDES: Diffuser & pictogram inserts
APPROVAL: Compliant to AS/NZS 2293
APPLICATIONS: Commercial office areas, hotels, shopping centres, apartments & hospitals
CLASSIFICATION: C0: E5.0, C90: E2.0
DURATION: 2 Hours (AS/NZS 2293)
CHARGER TYPE: Trickle
CHARGING TIME: 16 Hours
CHARGER OP: Continuous
MAX AMBIENT TEMP: 40°C
VIEWING DISTANCE: 24m

Ordering Information
Model Number: 14681
Model Name: 5W Emergency Exit Light LED 24m Viewing Distance Recess Mount 2 Hours Black Commercial Grade
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

This product conforms to AS/NZ electrical standards. Electrical installation must be performed by a licensed electrician. All product details are subject to change without notice. Final specifications may vary.

Product Name: 5W Emergency Exit Light LED 24m Viewing Distance Recess Mount 2 Hours Black Commercial Grade
Product Code: 14681

This emergency exit sign incorporates an integral emergency 2 hour battery pack that permits self-powered operation during power outages, backup with 50,000 hours average life rated LED modules. Includes replaceable easy fit pictogram decals.

Note: AS2293.1:2018 states that for for areas with low illuminance, it is acceptable for an emergency exit sign to have a dark background. Examples given by AS 2293.1:2018 of low illuminance areas include theatres, cinemas, auditoriums and lecture rooms.

TYPE: Emergency Exit Sign
COLOUR: Black
WARRANTY: 3 years
IP RATING: IP20 (indoor only)
MATERIAL: Injection moulded polycarbonate (fitting), acrylic (diffuser) with pictogram legends
GLOBE TYPE: LED (fixed in fitiing)
GLOBE INCLUDED: Yes (fixed LED chip)
CRI: 83
LIFE SPAN: 50,000 hours
DIMMABLE: No
HEIGHT: 212mm
WIDTH: 364mm
DEPTH: 94mm
WATTAGE: 5W (2W maintained lamp, 1W non-maintained lamp)
VOLTAGE: 240V
INSTALLATION: Recessed mounted
INCLUDES: Diffuser & pictogram inserts
APPROVAL: Compliant to AS/NZS 2293
APPLICATIONS: Commercial office areas, hotels, shopping centres, apartments & hospitals
CLASSIFICATION: C0: E5.0, C90: E2.0
DURATION: 2 Hours (AS/NZS 2293)
CHARGER TYPE: Trickle
CHARGING TIME: 16 Hours
CHARGER OP: Continuous
MAX AMBIENT TEMP: 40°C
VIEWING DISTANCE: 24m

Product Name: 5W Emergency Exit Light LED 24m Viewing Distance Recess Mount 2 Hours Black Commercial Grade
Product Code: 14681
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au
