EXITINGemergency and exit lights

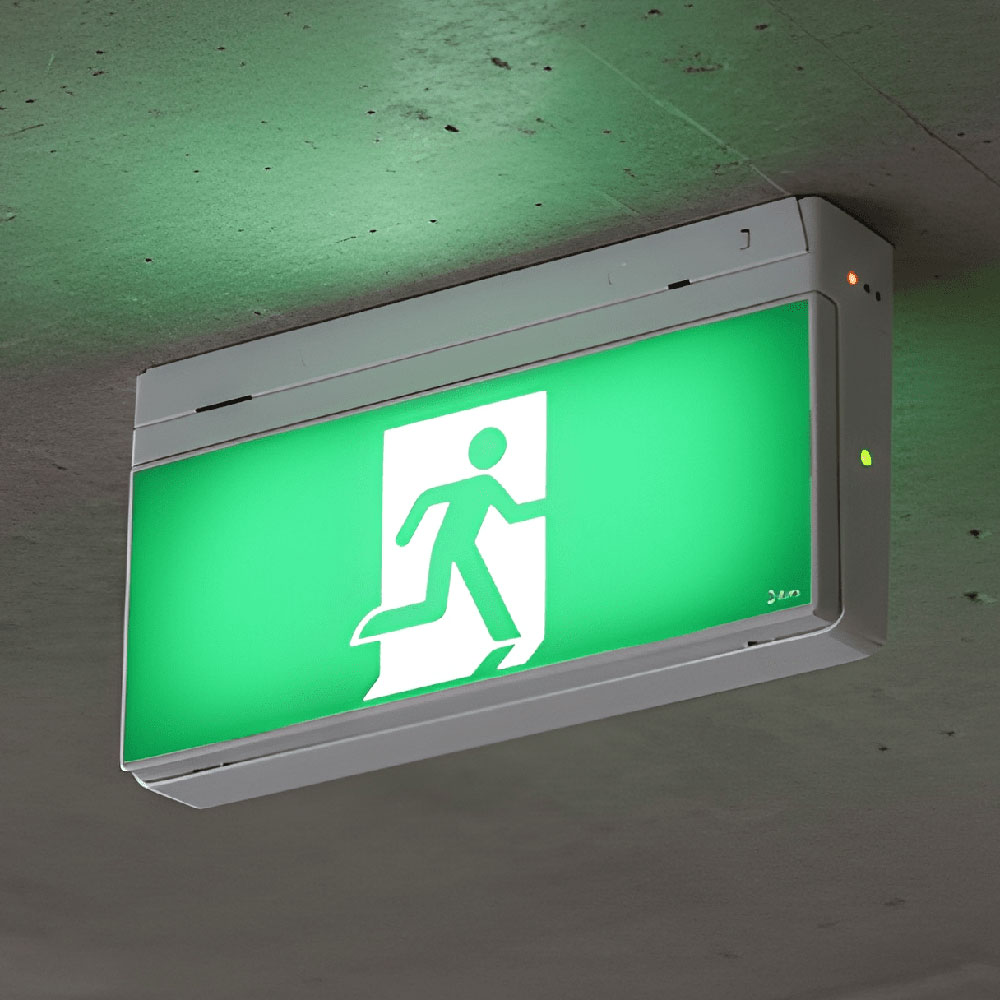

This industrial strength emergency exit light comes with the widely-used FastFit steel bracket for quick installation and easy maintenance and produces high performance, reliable and efficient exit lighting. It is compatible with similar slide and connect style brackets for ease of maintenance and replacement in a wide variety of indoor applications such as offices, retail stores, and commercial buildings.

TYPE: Industrial Strength Emergency Exit Sign
COLOUR: Green and white
WARRANTY: 5 years
IP RATING: IP20 (indoor only)
MATERIAL: Flame-retardant polycarbonate
GLOBE TYPE: High efficacy LED strip (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED strip)
LIFE SPAN: 50,000 hours
DIMENSIONS: 380mm x 75mm x 215mm
WEIGHT: 2kg
WATTAGE: 2W (standby)
OPERATION: Maintained
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATORS: Battery charger green LED
VOLTAGE: 230V (will handle 240V)
INSTALLATION: Large terminal block and 20mm² cable entry
MOUNTING: Surface mounted - wall or ceiling
INCLUDES: Diffuser, all variations of running man pictogram, large terminal block with cable entry,  steel FastFit bracket
APPROVAL: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
APPLICATIONS: Offices, warehouses, schools, factories, and public buildings
CLASSIFICATION: C0 D4 C90 D8
DURATION: > 2 Hours (AS/NZS 2293) during power outage
CHARGER TYPE: Intelligent 3-stage charger with battery management system
VIEWING DISTANCE: 24m
OPERATING TEMP: 1° to 40°C

Ordering Information
Model Number: 16071
Model Name: 2W Emergency Exit Light Industrial Strength FastFit Compatibe LED 24m 2 Hours Green
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

This product conforms to AS/NZ electrical standards. Electrical installation must be performed by a licensed electrician. All product details are subject to change without notice. Final specifications may vary.

Product Name: 2W Emergency Exit Light Industrial Strength FastFit Compatibe LED 24m 2 Hours Green
Product Code: 16071

This industrial strength emergency exit light comes with the widely-used FastFit steel bracket for quick installation and easy maintenance and produces high performance, reliable and efficient exit lighting. It is compatible with similar slide and connect style brackets for ease of maintenance and replacement in a wide variety of indoor applications such as offices, retail stores, and commercial buildings.

TYPE: Industrial Strength Emergency Exit Sign
COLOUR: Green and white
WARRANTY: 5 years
IP RATING: IP20 (indoor only)
MATERIAL: Flame-retardant polycarbonate
GLOBE TYPE: High efficacy LED strip (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED strip)
LIFE SPAN: 50,000 hours
DIMENSIONS: 380mm x 75mm x 215mm
WEIGHT: 2kg
WATTAGE: 2W (standby)
OPERATION: Maintained
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATORS: Battery charger green LED
VOLTAGE: 230V (will handle 240V)
INSTALLATION: Large terminal block and 20mm² cable entry
MOUNTING: Surface mounted - wall or ceiling
INCLUDES: Diffuser, all variations of running man pictogram, large terminal block with cable entry,  steel FastFit bracket
APPROVAL: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
APPLICATIONS: Offices, warehouses, schools, factories, and public buildings
CLASSIFICATION: C0 D4 C90 D8
DURATION: > 2 Hours (AS/NZS 2293) during power outage
CHARGER TYPE: Intelligent 3-stage charger with battery management system
VIEWING DISTANCE: 24m
OPERATING TEMP: 1° to 40°C

Product Name: 2W Emergency Exit Light Industrial Strength FastFit Compatibe LED 24m 2 Hours Green
Product Code: 16071
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

Exiting emergency and exit lights
ABN 97 623 567 868
www.exiting.com.au

This product conforms to AS/NZ electrical standards. Unless marked as DIY, electrical installation must be performed by a licensed electrician. The information in this datasheet has been carefully checked and is believed to be accurate - it is our practice to provide accurate information wherever possible; however, final specifications may vary. Performance data given in this document are provided as a guide for the user in determining suitability and do not constitute a warranty. Actual performance is subject to the Warranty and Limitations of Liability. Lighting Style shall not be responsible for special, indirect, or consequential damages or loss in any way connected with this product. Warranty is subject to the product being properly handled, stored, installed, and maintained.
