EXITINGemergency and exit lights

This industrial strength emergency exit light is extremely sturdy and is designed to withstand external environments, harsh weather conditions and vandalism. It produces excellent illumination with a long lasting battery for years of dependable exit lighting. Its robust, water-tight polycarbonate enclosure provides excellent protection against water, dust and impact and is well suited for a range of outdoor applications such as car parks and exposed stairwells, as well as indoor areas such as swimming centres, construction zones and train stations.

TYPE: Industrial Strength Emergency Exit Sign
COLOUR: Green and white
WARRANTY: 5 years
IP RATING: IP67 (waterproof)
IK RATING: IK10 (highest vandal proof rating)
MATERIAL: Flame-retardant polycarbonate
GLOBE TYPE: High efficacy LED strip (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED strip)
LIFE SPAN: 100,000 hours (light source)

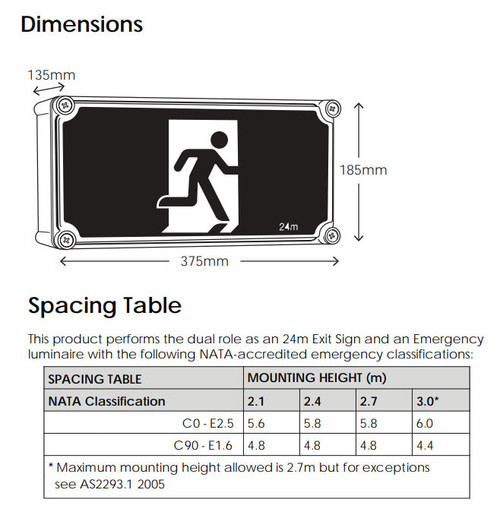

DIMENSIONS: 385mm x 185mm x 135mm
WEIGHT: 2.5kg
WATTAGE: 2W (standby)
OPERATION: Maintained
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATORS: Battery charger green LED
VOLTAGE: 230V (will handle 240V)
INSTALLATION: Large terminal block and 20mm² cable entry
MOUNTING: Surface mounted - wall
INCLUDES: Diffuser, running man pictogram, large terminal block with cable entry (please ask us if you need a different pictogram)
APPROVAL: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
APPLICATIONS: Stadiums, warehouses, car parks, public buildings, tunnels and train stations.
CLASSIFICATION: C0 E2.5 C90 E1.6
DURATION: > 3 Hours (AS/NZS 2293) during power outage (duration is longer than 2h required by standard)
CHARGER TYPE: Intelligent 3-stage charger with battery management system
VIEWING DISTANCE: 24m
OPERATING TEMP: 1° to 40°C
DALI COMATIBLE: Yes

Ordering Information
Model Number: 51695
Model Name: Emergency Exit Sign Industrial Strength 3 Hours Waterproof Vandal Proof 2W LED IP67 IK10 24m Green
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

This product conforms to AS/NZ electrical standards. Electrical installation must be performed by a licensed electrician. All product details are subject to change without notice. Final specifications may vary.

Product Name: Emergency Exit Sign Industrial Strength 3 Hours Waterproof Vandal Proof 2W LED IP67 IK10 24m Green
Product Code: 51695

This industrial strength emergency exit light is extremely sturdy and is designed to withstand external environments, harsh weather conditions and vandalism. It produces excellent illumination with a long lasting battery for years of dependable exit lighting. Its robust, water-tight polycarbonate enclosure provides excellent protection against water, dust and impact and is well suited for a range of outdoor applications such as car parks and exposed stairwells, as well as indoor areas such as swimming centres, construction zones and train stations.

TYPE: Industrial Strength Emergency Exit Sign
COLOUR: Green and white
WARRANTY: 5 years
IP RATING: IP67 (waterproof)
IK RATING: IK10 (highest vandal proof rating)
MATERIAL: Flame-retardant polycarbonate
GLOBE TYPE: High efficacy LED strip (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED strip)
LIFE SPAN: 100,000 hours (light source)
DIMENSIONS: 385mm x 185mm x 135mm
WEIGHT: 2.5kg
WATTAGE: 2W (standby)
OPERATION: Maintained
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATORS: Battery charger green LED
VOLTAGE: 230V (will handle 240V)
INSTALLATION: Large terminal block and 20mm² cable entry
MOUNTING: Surface mounted - wall
INCLUDES: Diffuser, running man pictogram, large terminal block with cable entry (please ask us if you need a different pictogram)
APPROVAL: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
APPLICATIONS: Stadiums, warehouses, car parks, public buildings, tunnels and train stations.
CLASSIFICATION: C0 E2.5 C90 E1.6
DURATION: > 3 Hours (AS/NZS 2293) during power outage (duration is longer than 2h required by standard)
CHARGER TYPE: Intelligent 3-stage charger with battery management system
VIEWING DISTANCE: 24m
OPERATING TEMP: 1° to 40°C
DALI COMATIBLE: Yes

Product Name: Emergency Exit Sign Industrial Strength 3 Hours Waterproof Vandal Proof 2W LED IP67 IK10 24m Green
Product Code: 51695
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

Exiting emergency and exit lights
ABN 97 623 567 868
www.exiting.com.au

This product conforms to AS/NZ electrical standards. Unless marked as DIY, electrical installation must be performed by a licensed electrician. The information in this datasheet has been carefully checked and is believed to be accurate - it is our practice to provide accurate information wherever possible; however, final specifications may vary. Performance data given in this document are provided as a guide for the user in determining suitability and do not constitute a warranty. Actual performance is subject to the Warranty and Limitations of Liability. Lighting Style shall not be responsible for special, indirect, or consequential damages or loss in any way connected with this product. Warranty is subject to the product being properly handled, stored, installed, and maintained.
