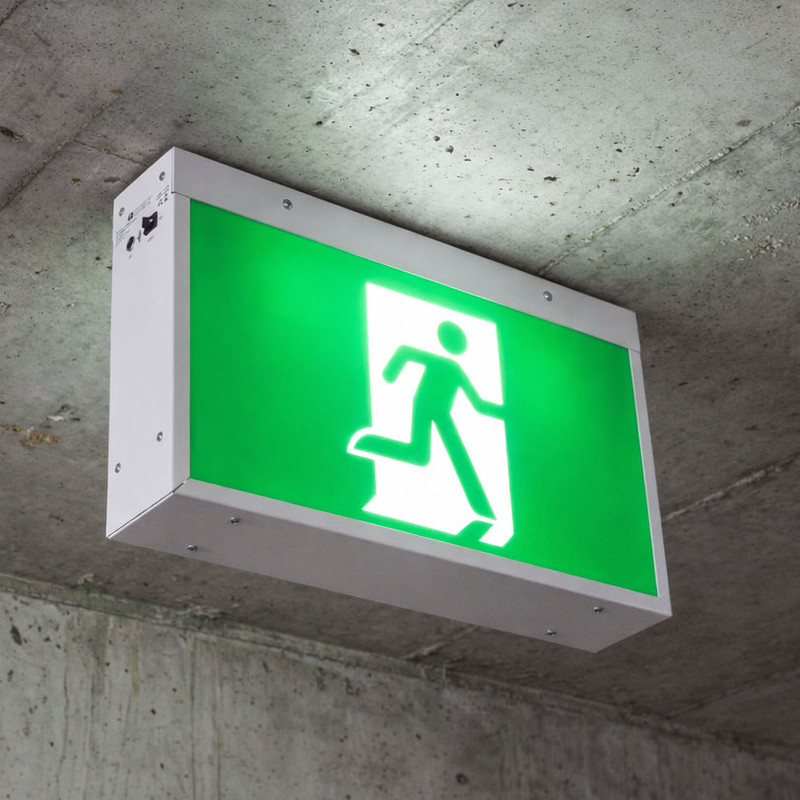

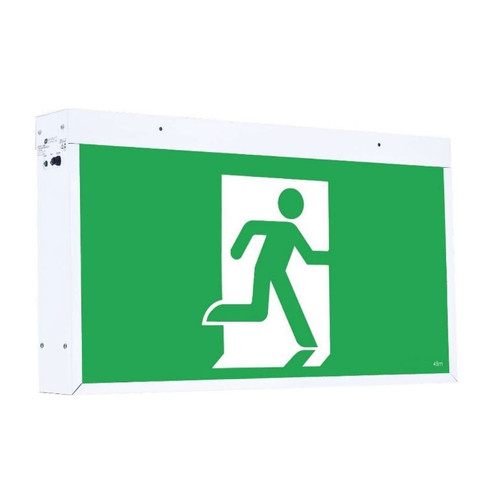

This extra large emergency exit sign provides double the viewing distance compared to conventional exit Lights and comes complete with a set of directional decals for single or double sided configurations. It comes in a robust steel chassis and can be suspended, wall or ceiling
mounted to suit large indoor spaces such as stadiums, warehouses, car parks, public buildings, tunnels and train stations.

TYPE: Extra Large Industrial Strength Emergency Exit Sign
COLOUR: Green and white
WARRANTY: 5 years
IP RATING: IP20 (indoor only)
MATERIAL: Folded sheet-metal, powdercoat white
GLOBE TYPE: High efficacy LED strip (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED strip)
LIFE SPAN: 50,000 hours
DIMENSIONS: 630mm x 100mm x 320mm
WEIGHT: 5kg
WATTAGE: 6W (standby)
OPERATION: Maintained
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATORS: Battery charger green LED
VOLTAGE: 230V (will handle 240V)
INSTALLATION: Large terminal block and 20mm² cable entry
MOUNTING: Surface mounted - wall or ceiling (single or double side application)
INCLUDES: Diffuser, all variations of running man pictogram, large terminal block with cable entry
APPROVAL: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
APPLICATIONS: Stadiums, warehouses, car parks, public buildings, tunnels and train stations.
CLASSIFICATION: C0 D6.3 C90 E3.2
DURATION: > 2 Hours (AS/NZS 2293) during power outage
CHARGER TYPE: Intelligent 3-stage charger with battery management system
VIEWING DISTANCE: 48m
OPERATING TEMP: 1° to 40°C

Ordering Information
Model Number: 16067
Model Name: 6W Emergency Exit Light Extra Large Industrial Strength LED 48m Surface Mounted 2 Hours Green
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

This product conforms to AS/NZ electrical standards. Electrical installation must be performed by a licensed electrician. All product details are subject to change without notice. Final specifications may vary.

Product Name: 6W Emergency Exit Light Extra Large Industrial Strength LED 48m Surface Mounted 2 Hours Green
Product Code: 16067

This extra large emergency exit sign provides double the viewing distance compared to conventional exit Lights and comes complete with a set of directional decals for single or double sided configurations. It comes in a robust steel chassis and can be suspended, wall or ceiling
mounted to suit large indoor spaces such as stadiums, warehouses, car parks, public buildings, tunnels and train stations.

TYPE: Extra Large Industrial Strength Emergency Exit Sign
COLOUR: Green and white
WARRANTY: 5 years
IP RATING: IP20 (indoor only)
MATERIAL: Folded sheet-metal, powdercoat white
GLOBE TYPE: High efficacy LED strip (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED strip)
LIFE SPAN: 50,000 hours
DIMENSIONS: 630mm x 100mm x 320mm
WEIGHT: 5kg
WATTAGE: 6W (standby)
OPERATION: Maintained
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATORS: Battery charger green LED
VOLTAGE: 230V (will handle 240V)
INSTALLATION: Large terminal block and 20mm² cable entry
MOUNTING: Surface mounted - wall or ceiling (single or double side application)
INCLUDES: Diffuser, all variations of running man pictogram, large terminal block with cable entry
APPROVAL: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
APPLICATIONS: Stadiums, warehouses, car parks, public buildings, tunnels and train stations.
CLASSIFICATION: C0 D6.3 C90 E3.2
DURATION: > 2 Hours (AS/NZS 2293) during power outage
CHARGER TYPE: Intelligent 3-stage charger with battery management system
VIEWING DISTANCE: 48m
OPERATING TEMP: 1° to 40°C

Product Name: 6W Emergency Exit Light Extra Large Industrial Strength LED 48m Surface Mounted 2 Hours Green
Product Code: 16067
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

Exiting emergency and exit lights
ABN 97 623 567 868
www.exiting.com.au

This product conforms to AS/NZ electrical standards. Unless marked as DIY, electrical installation must be performed by a licensed electrician. The information in this datasheet has been carefully checked and is believed to be accurate - it is our practice to provide accurate information wherever possible; however, final specifications may vary. Performance data given in this document are provided as a guide for the user in determining suitability and do not constitute a warranty. Actual performance is subject to the Warranty and Limitations of Liability. Lighting Style shall not be responsible for special, indirect, or consequential damages or loss in any way connected with this product. Warranty is subject to the product being properly handled, stored, installed, and maintained.
