EXITINGemergency and exit lights

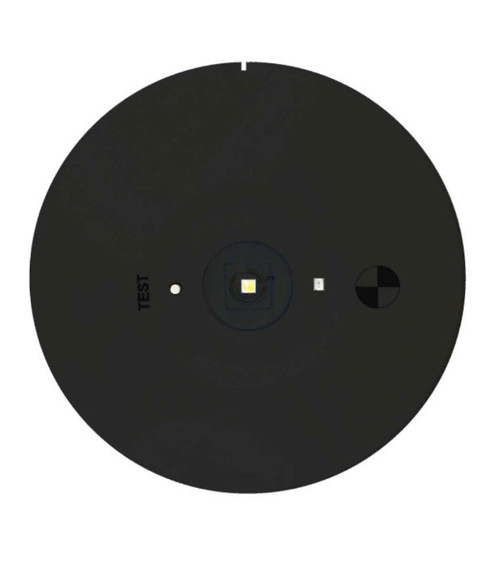

This industrial strength emergency downlight combines a lifetime-warranted LED with an optical lens to deliver an unobtrusive, ultra-bright source of illumination intended to alleviate panic and establish a safe, distinct and efficient path in the event of an emergency. It comes with a disc that can be recessed into a ceiling cavity. It can be used in almost all general applications including offices, shopping centres, commercial properties and residential buildings.

TYPE: Industrial Strength Emergency Downlight
COLOUR: Black
WARRANTY: 5 years
IP RATING: IP44 (weatherproof)
MATERIAL: Flame-retardant polycarbonate
GLOBE TYPE: High performance 5W LED with optical lens - lifetime warranty
GLOBE INCLUDED: Yes (fixed LED chip)
DIAMETER: 95mm or 145mm (comes with two discs of different sizes)
CUTOUT: 70mm or 135mm
MOUNTING: Recessed ceiling mounted
WEIGHT: 1kg
WATTAGE: 2W (non-maintained)
VOLTAGE: 230V (handles 240V)
INCLUDES: 1.2m flex cable & plug, two different sized discs
APPROVAL: Compliant to RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
APPLICATIONS: Offices, shopping centres, commercial properties, and residential buildings.
CLASSIFICATION: C0 D63 C90 D63
DURATION: > 2 Hours (AS/NZS 2293)
CHARGER TYPE: 16 hours intelligent 3-stage charger battery management system
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATOR: Battery charger green LED
AMBIENT TEMP: 1° to 40°C

Ordering Information
Model Number: 16061
Model Name: 2W Emergency Downlight Industrial Strength D60 LED IP44 2 Hours Recessed Black
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

This product conforms to AS/NZ electrical standards. Electrical installation must be performed by a licensed electrician. All product details are subject to change without notice. Final specifications may vary.

Product Name: 2W Emergency Downlight Industrial Strength D60 LED IP44 2 Hours Recessed Black
Product Code: 16061

This industrial strength emergency downlight combines a lifetime-warranted LED with an optical lens to deliver an unobtrusive, ultra-bright source of illumination intended to alleviate panic and establish a safe, distinct and efficient path in the event of an emergency. It comes with a disc that can be recessed into a ceiling cavity. It can be used in almost all general applications including offices, shopping centres, commercial properties and residential buildings.

TYPE: Industrial Strength Emergency Downlight
COLOUR: Black
WARRANTY: 5 years
IP RATING: IP44 (weatherproof)
MATERIAL: Flame-retardant polycarbonate
GLOBE TYPE: High performance 5W LED with optical lens - lifetime warranty
GLOBE INCLUDED: Yes (fixed LED chip)
DIAMETER: 95mm or 145mm (comes with two discs of different sizes)
CUTOUT: 70mm or 135mm
MOUNTING: Recessed ceiling mounted
WEIGHT: 1kg
WATTAGE: 2W (non-maintained)
VOLTAGE: 230V (handles 240V)
INCLUDES: 1.2m flex cable & plug, two different sized discs
APPROVAL: Compliant to RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
APPLICATIONS: Offices, shopping centres, commercial properties, and residential buildings.
CLASSIFICATION: C0 D63 C90 D63
DURATION: > 2 Hours (AS/NZS 2293)
CHARGER TYPE: 16 hours intelligent 3-stage charger battery management system
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATOR: Battery charger green LED
AMBIENT TEMP: 1° to 40°C

Product Name: 2W Emergency Downlight Industrial Strength D60 LED IP44 2 Hours Recessed Black
Product Code: 16061
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

Exiting emergency and exit lights
ABN 97 623 567 868
www.exiting.com.au

This product conforms to AS/NZ electrical standards. Unless marked as DIY, electrical installation must be performed by a licensed electrician. The information in this datasheet has been carefully checked and is believed to be accurate - it is our practice to provide accurate information wherever possible; however, final specifications may vary. Performance data given in this document are provided as a guide for the user in determining suitability and do not constitute a warranty. Actual performance is subject to the Warranty and Limitations of Liability. Lighting Style shall not be responsible for special, indirect, or consequential damages or loss in any way connected with this product. Warranty is subject to the product being properly handled, stored, installed, and maintained.
