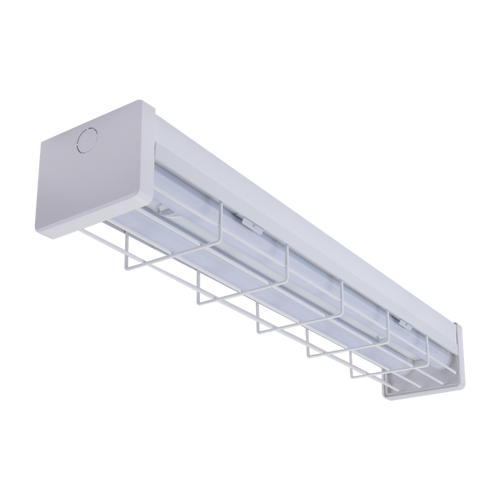

In the realm of industrial lighting, this 620mm long emergency batten light stands out for its industrial grade design and reliable performance. Crafted with Australian ingenuity, this luminaire is engineered for swift and effortless installation, embodying the essence of industrial efficiency. Operating at an input voltage of 240V AC, the batten light delivers high-output Dedicated LED lumens of 130lm/W, providing uncompromising brightness in challenging industrial settings. Its innovative half-power switch on the driver allows for precise control, enabling a 50% reduction in lumen output when necessary. With a switchable CCT ranging from SMD 3000K to 5000K, this batten offers versatile lighting options, ensuring optimal visibility and productivity. The opal diffuser ensures uniform light distribution, enhancing workplace safety and efficiency. Compliant with AS2293.3, AMD 1 and 2 Annex C and EMC standards, this luminaire is a testament to reliability and durability, backed by a 5-year warranty on the body / 3-year warranty on the battery.

Remote control is required (see above) - please note that ONE remote control can be used for multiple lights.

COLOUR: White
WARRANTY: 5 year warranty / 3 year warranty on battery
IP RATING: IP20
MATERIAL: Metal and polycarbonate and opal diffuser
LUMENS: 130 lm/W high output dedicated LED
COLOUR TEMP: CCT - 3000K (warm white) / 4000K (cool white) / 5000K (daylight white) - switchable
GLOBE TYPE: LED (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED chip)
CRI: >80
BEAM ANGLE: 120°
SENSOR: Yes (dimmable, on/off and multiple modes set by remote control)
DIMMABLE: Yes (via remote)
DIMENSIONS: 620mm L x 109mm W x 82mm H
WATTAGE: 7.5W / 15W (half power switch on the driver which decreases the lumen output by 50%)
VOLTAGE: 240V
APPROVAL: Complies with AS2293.3 AMD 1 & 2 Annex C / EMC compliant
DURATION: Emergency duration >90 minutes (per Australian standards)
EMERGENCY: Maintained / Non-Maintained
BATTERY: LiFePO4
DESIGNED: Australian
COVER: Metal guard, opal with even light output
TERMINAL: Large terminal, PA16
FEATURE: 20mm knockouts for conduit or cable glands, Charge time 24 Hours
MODE: Usually non-maintained (but can be wired to maintained by the installing electrician)
REMOTE CONTROL: Required however note that a single remote can be used for multiple battens

Ordering Information
Model Number: 37563
Model Name: Emergency Batten Light 620mm Wire Guard Dimmable Sensor Industrial Grade Maintained/Non-Maintained
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

This product conforms to AS/NZ electrical standards. Electrical installation must be performed by a licensed electrician. All product details are subject to change without notice. Final specifications may vary.
