EXITINGemergency and exit lights

This emergency batten light is a rugged beautifully engineered industrial-grade solution, featuring IP65 rating for indoor and outdoor dust and water resistance. With switchable power from 7.5W to 15W, SMD LEDs, and a CCT range of 3000K to 5000K, it provides high-quality, adaptable lighting with a wide beam angle, excellent color rendering and uniform light distribution. It is easy to install either as surface-mounted or suspended, this batten has a lifespan of 50,000 hours and complies with AS/NZS 2293 standards. Ideal for any environment including residential, commercial or industrial.

COLOUR: White
WARRANTY: 5 year warranty on body / 3 year warranty on battery
INSTALLATION: Surface mounted or suspended
IP RATING: IP65 (fully weatherproof)
DURATION: Rated for 120 minutes (exceeding Australian standards of >90 minutes)
MATERIAL: Impact-resistant polycarbonate
COLOUR TEMP: CCT - 3000K (warm white) / 4000K (cool white) / 5000K (daylight white) - switchable
GLOBE INCLUDED: Yes (fixed LED chips)
CRI: >80
BEAM ANGLE: 120°
DIMMABLE: No

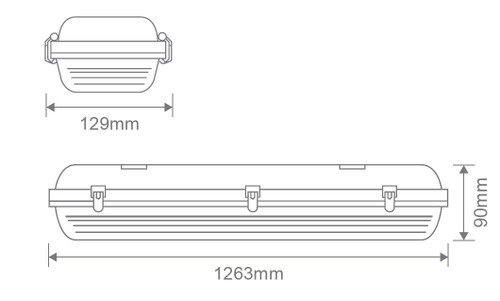

DIMENSIONS: 1263mm L x 129mm W x 90mm H
WATTAGE: 15W / 30W (half power switch on the driver which decreases the lumen output by 50%)
LUMENS AT 15W: 2350lm (at 3000K), 2400lm (at 4000K), 2400lm (at 5000K)
LUMENS AT 30W: 4050lm (at 3000K), 4250lm (at 4000K), 4150lm (at 5000K)
LIFESPAN: 50,000 hours
VOLTAGE: 240V
COMPLIANCE: Fully compliant to AS/NZS 2293 standards
EMERGENCY: Maintained / Non-Maintained
MODE: Usually non-maintained (but can be wired to maintained by the installing electrician)
BATTERY: LiFePO4 6.4V 7 hour charging time, with capacity 1500 mAh at 0.2 CmA
DESIGNED: Australian
COVER: Polycarbonate guard, opal with even light output
CLASSIFICATION: C0: D50, C90: D32

Ordering Information
Model Number: 37578
Model Name: Emergency Batten Light 1.3m Polycarb Guard Industrial Grade Maintained/Non-Maintained
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

This product conforms to AS/NZ electrical standards. Electrical installation must be performed by a licensed electrician. All product details are subject to change without notice. Final specifications may vary.

Product Name: Emergency Batten Light 1.3m Polycarb Guard Industrial Grade Maintained/Non-Maintained
Product Code: 37578

This emergency batten light is a rugged beautifully engineered industrial-grade solution, featuring IP65 rating for indoor and outdoor dust and water resistance. With switchable power from 7.5W to 15W, SMD LEDs, and a CCT range of 3000K to 5000K, it provides high-quality, adaptable lighting with a wide beam angle, excellent color rendering and uniform light distribution. It is easy to install either as surface-mounted or suspended, this batten has a lifespan of 50,000 hours and complies with AS/NZS 2293 standards. Ideal for any environment including residential, commercial or industrial.

COLOUR: White
WARRANTY: 5 year warranty on body / 3 year warranty on battery
INSTALLATION: Surface mounted or suspended
IP RATING: IP65 (fully weatherproof)
DURATION: Rated for 120 minutes (exceeding Australian standards of >90 minutes)
MATERIAL: Impact-resistant polycarbonate
COLOUR TEMP: CCT - 3000K (warm white) / 4000K (cool white) / 5000K (daylight white) - switchable
GLOBE INCLUDED: Yes (fixed LED chips)
CRI: >80
BEAM ANGLE: 120°
DIMMABLE: No
DIMENSIONS: 1263mm L x 129mm W x 90mm H
WATTAGE: 15W / 30W (half power switch on the driver which decreases the lumen output by 50%)
LUMENS AT 15W: 2350lm (at 3000K), 2400lm (at 4000K), 2400lm (at 5000K)
LUMENS AT 30W: 4050lm (at 3000K), 4250lm (at 4000K), 4150lm (at 5000K)
LIFESPAN: 50,000 hours
VOLTAGE: 240V
COMPLIANCE: Fully compliant to AS/NZS 2293 standards
EMERGENCY: Maintained / Non-Maintained
MODE: Usually non-maintained (but can be wired to maintained by the installing electrician)
BATTERY: LiFePO4 6.4V 7 hour charging time, with capacity 1500 mAh at 0.2 CmA
DESIGNED: Australian
COVER: Polycarbonate guard, opal with even light output
CLASSIFICATION: C0: D50, C90: D32

Product Name: Emergency Batten Light 1.3m Polycarb Guard Industrial Grade Maintained/Non-Maintained
Product Code: 37578
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

Exiting emergency and exit lights
ABN 97 623 567 868
www.exiting.com.au

This product conforms to AS/NZ electrical standards. Unless marked as DIY, electrical installation must be performed by a licensed electrician. The information in this datasheet has been carefully checked and is believed to be accurate - it is our practice to provide accurate information wherever possible; however, final specifications may vary. Performance data given in this document are provided as a guide for the user in determining suitability and do not constitute a warranty. Actual performance is subject to the Warranty and Limitations of Liability. Lighting Style shall not be responsible for special, indirect, or consequential damages or loss in any way connected with this product. Warranty is subject to the product being properly handled, stored, installed, and maintained.
