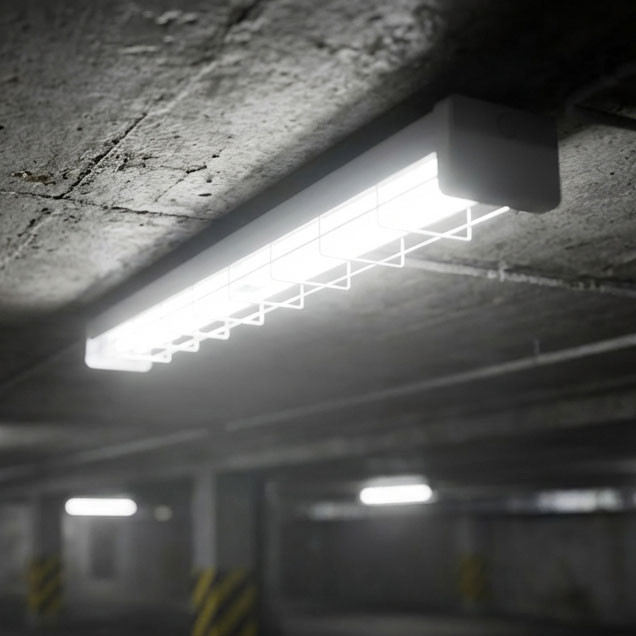

This commercial grade emergency batten light, designed for industrial-grade applications, delivers exceptional performance and reliability in critical settings. Engineered with precision and Australian ingenuity, this 1.2-meter luminaire is designed to withstand the demands of high-performance environments. Operating on a 240V AC input voltage, it provides superior illumination with high-output dedicated LED lumens of 130lm/W, ensuring optimal brightness even in challenging industrial locations. The inclusion of a half-power switch on the driver provides additional flexibility, enabling a 50% reduction in lumen output when required. This feature allows the batten light to adapt to varying light conditions and operational needs, contributing to both energy efficiency and the long-term sustainability of the installation.
The versatility of the emergency batten light is further enhanced by its switchable colour temperature (CCT), offering a range from 3000K (warm white) to 5000K (daylight white). This ensures that the light can be tailored to meet specific operational needs, whether in environments requiring warmer, softer illumination or cooler, more energizing light. The opal diffuser plays a crucial role in delivering even light distribution across the workplace, thereby reducing glare and improving overall safety and productivity. The design prioritizes both form and function, making it a reliable and efficient lighting solution for industrial and commercial settings that demand superior quality and performance.
This emergency batten light is designed to comply with stringent Australian standards, including AS2293.3, AMD 1 and 2 Annex C, and EMC compliance, assuring that it meets the highest levels of safety, reliability, and operational efficiency. With an IP20 rating and constructed from robust metal and polycarbonate materials, it is built to withstand industrial environments while maintaining optimal functionality. The integrated LiFePO4 battery ensures that the luminaire can provide emergency lighting for over 90 minutes, meeting Australian regulatory requirements. Furthermore, the emergency batten light is equipped with a remote control feature, allowing for easy operation and mode setting, and a single remote can control multiple units, offering convenience for large-scale installations.
In terms of durability, the product is backed by a comprehensive warranty: a 5-year warranty for the body and a 3-year warranty for the battery, ensuring peace of mind for users. The batten light also features a large terminal (PA16) and 20mm knockouts for conduit or cable glands, enabling straightforward installation and integration into various systems. Its metal guard and opal diffuser ensure lasting protection and a consistent light output, even in the most demanding environments. With a charge time of 24 hours and an emergency duration exceeding 90 minutes, this product is a testament to superior engineering, designed for those who require a robust and efficient lighting solution.
Note: a single remote control can be used for multiple lights.
COLOUR: White
WARRANTY: 5 year warranty / 3 year warranty on battery
IP RATING: IP20
MATERIAL: Metal and polycarbonate and opal diffuser
LUMENS: 130 lm/W high output dedicated LED
COLOUR TEMP: CCT - 3000K (warm white) / 4000K (cool white) / 5000K (daylight white) - switchable
GLOBE TYPE: LED (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED chip)
CRI: >80
BEAM ANGLE: 120°
SENSOR: Yes (on/off and modes set by remote control)
DIMMABLE: No
DIMENSIONS: 1200mm L x 109mm W x 82mm H
WATTAGE: 15W / 30W (half power switch on the driver which decreases the lumen output by 50%)
VOLTAGE: 240V
APPROVAL: Complies with AS2293.3 AMD 1 & 2 Annex C / EMC compliant
DURATION: Emergency duration >90 minutes (per Australian standards)
EMERGENCY: Maintained / Non-Maintained
BATTERY: LiFePO4
DESIGNED: Australian
COVER: Metal guard, opal with even light output
TERMINAL: Large terminal, PA16
FEATURE: 20mm knockouts for conduit or cable glands, Charge time 24 Hours
MODE: Usually non-maintained (but can be wired to maintained by the installing electrician)
REMOTE CONTROL: Required however note that a single remote can be used for multiple battens
