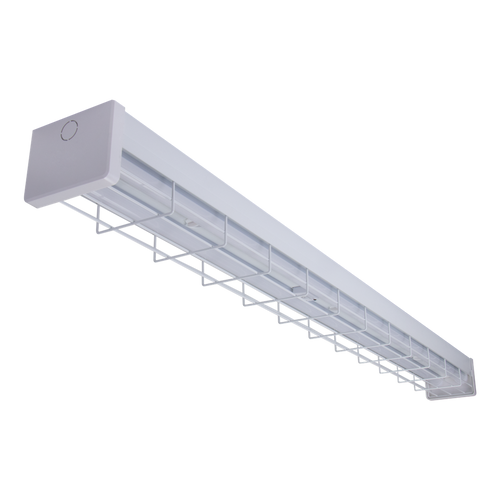

This commercial grade emergency batten light offers an advanced, industrial-grade lighting solution designed for high-performance environments. With a robust design, this 1.2-meter luminaire is built to deliver exceptional reliability in challenging industrial settings. Operating at a standard input voltage of 240V AC, it utilizes high-output Dedicated LED technology, providing an impressive 130lm/W to ensure bright, efficient illumination. This makes it an ideal choice for locations where consistent and dependable lighting is paramount, including warehouses, factories, and other commercial spaces.
Equipped with a half-power switch on the driver, this batten light allows users to reduce lumen output by 50%, offering adaptable lighting performance. This feature is invaluable for scenarios where lower lighting levels are required while maintaining energy efficiency. The switchable Colour Correlated Temperature (CCT) functionality, ranging from 3000K (warm white) to 5000K (daylight white), further enhances versatility, enabling the user to tailor the lighting environment to their specific needs. Whether in need of a warm ambiance or a bright, crisp workspace, the CCT adjustment ensures optimal lighting conditions, supporting both safety and productivity.
Constructed from high-quality materials including metal, polycarbonate, and an opal diffuser, the batten light provides even light distribution, reducing shadows and enhancing visibility in work areas. The uniform light output is especially beneficial for ensuring safety, as it minimizes eye strain and improves overall work environment quality. The unit’s compliance with Australian Standards (AS2293.3, AMD 1 & 2 Annex C) and EMC standards guarantees that it meets strict regulatory requirements, making it a dependable choice for industrial applications.
The batten light is designed for both maintained and non-maintained emergency lighting modes, with a high-performing LiFePO4 battery providing over 90 minutes of emergency backup duration, in accordance with Australian standards. This long-lasting battery, combined with a five-year warranty on the body and a three-year warranty on the battery, assures users of its durability and performance. Easy to install with features such as 20mm knockouts for conduit or cable glands, it also includes a large terminal for quick and secure connections. This emergency batten light is the ultimate lighting solution for facilities where safety, reliability, and efficiency are top priorities.
COLOUR: White
WARRANTY: 5 year warranty / 3 year warranty on battery
IP RATING: IP20
MATERIAL: Metal and polycarbonate and opal diffuser
LUMENS: 130 lm/W high output dedicated LED
COLOUR TEMP: CCT - 3000K (warm white) / 4000K (cool white) / 5000K (daylight white) - switchable
GLOBE TYPE: LED (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED chip)
CRI: >80
BEAM ANGLE: 120°
DIMMABLE: No
DIMENSIONS: 1230mm L x 109mm W x 82mm H
WATTAGE: 15W / 30W (half power switch on the driver which decreases the lumen output by 50%)
VOLTAGE: 240V
APPROVAL: Complies with AS2293.3 AMD 1 & 2 Annex C / EMC compliant
DURATION: Emergency duration >90 minutes (per Australian standards)
EMERGENCY: Maintained / Non-Maintained
BATTERY: LiFePO4
DESIGNED: Australian
COVER: Wire guards, opal with even light output
TERMINAL: Large terminal, PA16
FEATURE: 20mm knockouts for conduit or cable glands, Charge time 24 Hours
MODE: Usually non-maintained (but can be wired to maintained by the installing electrician)
