This commercial grade emergency batten light 1.2m with a polycarbonate guard and On/Off sensor is designed to meet the rigorous demands of industrial environments, offering both reliability and flexibility. The luminaire features a robust construction, incorporating metal, polycarbonate, and an opal diffuser to ensure durability and uniform light distribution. With its industrial-grade design, this light is built to withstand the challenging conditions found in factories, warehouses, and commercial spaces, providing excellent illumination while ensuring workplace safety and operational efficiency.
Operating at an input voltage of 240V AC, this emergency batten light delivers a high output of 130 lumens per watt, using dedicated LED technology to produce bright, consistent light. The switchable CCT feature offers versatility with three color temperature options: 3000K (warm white), 4000K (cool white), and 5000K (daylight white), enabling optimal lighting conditions to suit various tasks and settings. The included opal diffuser ensures smooth and even light distribution, minimizing glare and maximizing visibility in all areas, which is crucial in industrial settings where clear, precise illumination is needed.
The emergency batten light is equipped with a half-power switch that reduces the lumen output by 50%, allowing for energy savings without compromising functionality. This feature, controlled via the driver, provides flexibility in maintaining an appropriate level of lighting depending on the environment's requirements. The light is also compliant with Australian standards AS2293.3, AMD 1 & 2 Annex C and EMC standards, ensuring its safety, performance, and compatibility with local regulations. The unit includes a high-quality LiFePO4 battery, which offers over 90 minutes of emergency duration and a 24-hour charge time for reliable operation during power outages.
Built for ease of installation, the light features large PA16 terminals and 20mm knockouts for conduit or cable glands, allowing for quick and straightforward setup. Its IP20 rating makes it suitable for indoor applications, while the polycarb guard offers additional protection. The system operates in both maintained and non-maintained modes, with the flexibility to be configured according to the needs of the installation. Backed by a 5-year warranty on the body and a 3-year warranty on the battery, this emergency batten light stands as a top-tier, dependable solution for industrial lighting applications.
Note: a single remote control can be used for multiple lights.
COLOUR: White
WARRANTY: 5 year warranty / 3 year warranty on battery
IP RATING: IP20
MATERIAL: Metal and polycarbonate and opal diffuser
LUMENS: 130 lm/W high output dedicated LED
COLOUR TEMP: CCT - 3000K (warm white) / 4000K (cool white) / 5000K (daylight white) - switchable
GLOBE TYPE: LED (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED chip)
CRI: >80
BEAM ANGLE: 120°
SENSOR: Yes (on/off and modes set by remote control)
DIMMABLE: No

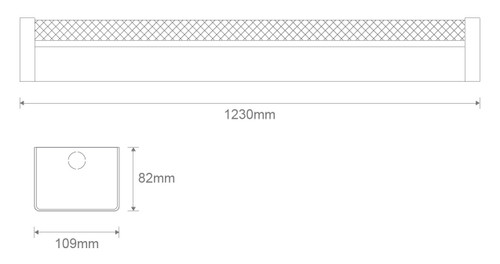

DIMENSIONS: 1230mm L x 109mm W x 82mm H
WATTAGE: 15W / 30W (half power switch on the driver which decreases the lumen output by 50%)
VOLTAGE: 240V
APPROVAL: Complies with AS2293.3 AMD 1 & 2 Annex C / EMC compliant
DURATION: Emergency duration >90 minutes (per Australian standards)
EMERGENCY: Maintained / Non-Maintained
BATTERY: LiFePO4
DESIGNED: Australian
COVER: Polycarb guard, opal with even light output
TERMINAL: Large terminal, PA16
FEATURE: 20mm knockouts for conduit or cable glands, Charge time 24 Hours
MODE: Usually non-maintained (but can be wired to maintained by the installing electrician)
REMOTE CONTROL: Required however note that a single remote can be used for multiple battens
